Flat Dilatometer Test Apparatus Dilatometer Marchetti test Apparatus

Name: Flat Dilatometer Test Apparatus Dilatometer Marchetti test Apparatus
Brand: zealchon
Price: 8500 USD

China Flat Dilatometer Test Apparatus Dilatometer Marchetti test Apparatus wholesale

Brand Name : zealchon

Model Number : WW3

Certification : CE ISO

Place of Origin : China

MOQ : 1set

Price : $8500

Payment Terms : L/C, Western Union, T/T

Supply Ability : 100sets/month

Delivery Time : 7days

Packaging Details : wooden box

Test probe : length 230-240mm, width 95mm, thickness 15mm

Diameter of steel film : 60mm

Test depth : 0-50m

Indication error of the whole process : ±0.1%F.S

Product name : Dilatometer Marchetti Test

Contact Now

Product Description

Flat Dilatometer Test Apparatus Dilatometer Marchetti test Apparatus

Specification

Test probe	length 230-240mm, width 95mm, thickness 15mm;
. Diameter of steel film	60mm
Test depth	0-50m (special stratum can be deepened); test spacing can be adjusted arbitrarily according to actual needs.
Indication error of the whole process:	±0.1%F.S
Standard	BS.EN.ASTM
Product name	Dilatometer Marchetti Test

Marchetti Dilatometer equipment

Product introduction:

This test has the functions and advantages of static cone penetration and side pressure test: the test is fast, accurate and economical. The test data has good reproducibility, small human influence factors, automatic data acquisition and storage, and automatic control of test signals. It is the first at home and abroad, and it has a data processing system (software) and two-way communication with it.

It can provide many important parameters of soil: lateral pressure coefficient Ko, pore water pressure U, undrained shear strength Cu, effective internal friction angle of sand Φ, bed reaction coefficient Kn, over-consolidation ratio OCR, compression modulus, Elastic modulus, shear modulus, division and naming of soil layers, compaction control, bulk density, judgment of sandy soil liquefaction... etc.

1. Penetration is generally pressed into the soil with a static cone penetrating machine, or into the soil with a dynamic penetrating hammer.

2. This test is suitable for all kinds of clay, silt and all kinds of sandy soil layers.

3. Using U disk storage and transmission, data transmission with the computer is more efficient and convenient. Product main parameters:

1. Test probe: length 230-240mm, width 95mm, thickness 15mm;

2. Diameter of steel film: 60mm;

3. Rated air pressure: ;

4. Test depth: 0-50m (special stratum can be deepened); test spacing can be adjusted arbitrarily according to actual needs.

5. Indication error of the whole process: ±0.1%F.S

6. The number of test results storage holes is up to 9999.

7. Low power consumption, using rechargeable lithium battery, standby time up to 24 hours.

8. The measurement and control instrument is displayed as a liquid crystal display

9. Make data processing system (software) and its two-way communication

Related products

Company Profile

After-service

FAQ

1. Who are we?

We are based in Shaanxi, China, start from 2014, sell to Eastern Asia(30.00%), South Asia(30.00%), Mid East(15.00%), Western Europe(15.00%), Southern Europe(10.00%). There are total about 11-50 people in our office.

2.What can you buy from us?

Bitumen Testing, Material Testing, Aggregate Testing Machine, Soil Testing, Laboratory machine.

3.How can we guarantee quality?

Always a pre-production sample before mass production; Inspection and Calibration: technician do it strictly before shipment.

4. Why should you buy from us not from other suppliers?

We have 20 years of experience in design research and development, with the guidance of professors and researchers from the Well-known institutions in China,developed a series of leading domestic detecting instrument and laser products.with a dedicated after-sales team. Support product customization.

5. What services can we provide?

Accepted Delivery Terms: FOB, CIF, EXW, DDP, Express Delivery；

Accepted Payment Currency: USD, EUR, JPY, CAD, AUD;

Accepted Payment Type: T/T, Credit Card, PayPal, Western Union or other payment can be negotiated before shipment.

Language Spoken:English,Chinese,Spanish,Japanese

Training: usually do it in our factory, for special requirement, can arrange technician go to customer site for training.

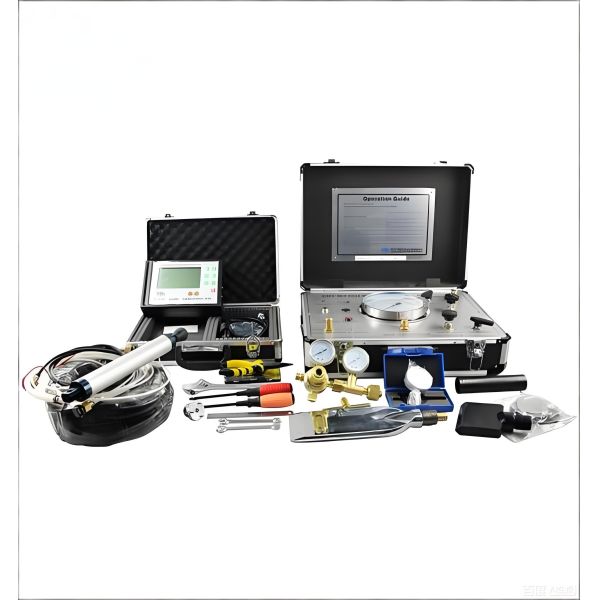

Flat Dilatometer Test Apparatus Dilatometer Marchetti test Apparatus Images
